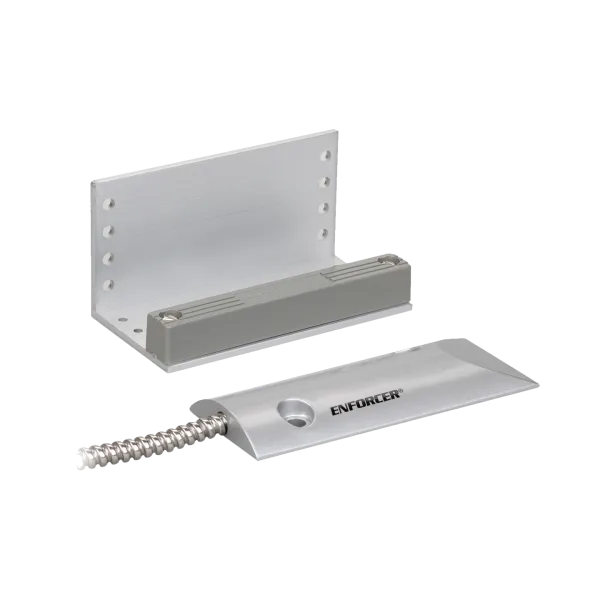

Overhead Door Magnetic Contact, 2-3/4″ (70mm) Gap, Open/Closed loop (3 Wires)

DESCRIPTION

• Operating voltage: 12~24 VDC
• 2-3/4″ (70mm) Gap for overhead doors
• Adjustable to fit most door-channel widths
• 24″ (61cm) Armored wire leads
• Reed switch has deactivated rhodium on gold underplating
• For open or closed-loop circuits
• Weatherproof IP66 – Epoxy sealed for weatherproof installation
• Mounting bracket included
• Limited lifetime warranty

SPECIFICATIONS

IP Rating	Weatherproof IP66 – Epoxy sealed
Operating Voltage	12~24 VDC
Loop Type	Open/Closed loop
Electrical Configuration	SPDT
Operation Gap	2-3/4″, (70mm)
Material – Magnet	ABS plastic on L-bracket
Material – Switch	Heavy-duty cast-aluminum case
Material – Terminals	24″ (61cm) armored leads
Contacts	Deactivated rhodium on gold under-plating
Contact Rating	0.2A@10VDC (max), 3W (max)
Operating Temperature	-15º~ 160º F (-25º~70º C)
Switch Cycles	50 Million (0.1mA@5VDC)
Switch Dimensions	4-5/16″x1-3/4″x7/16″ (110x44x11mm)
Magnet Dimensions	3-15/16″x2″x2″ (100x51x51mm)
Magnet Type	Alnico 5
